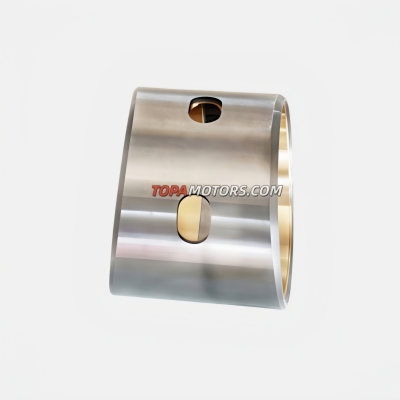

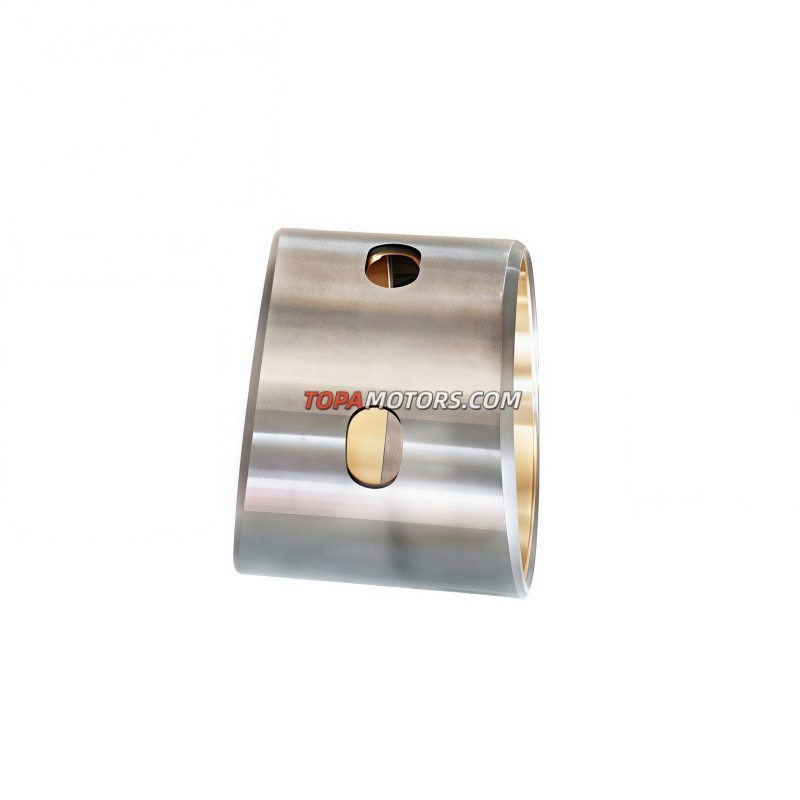

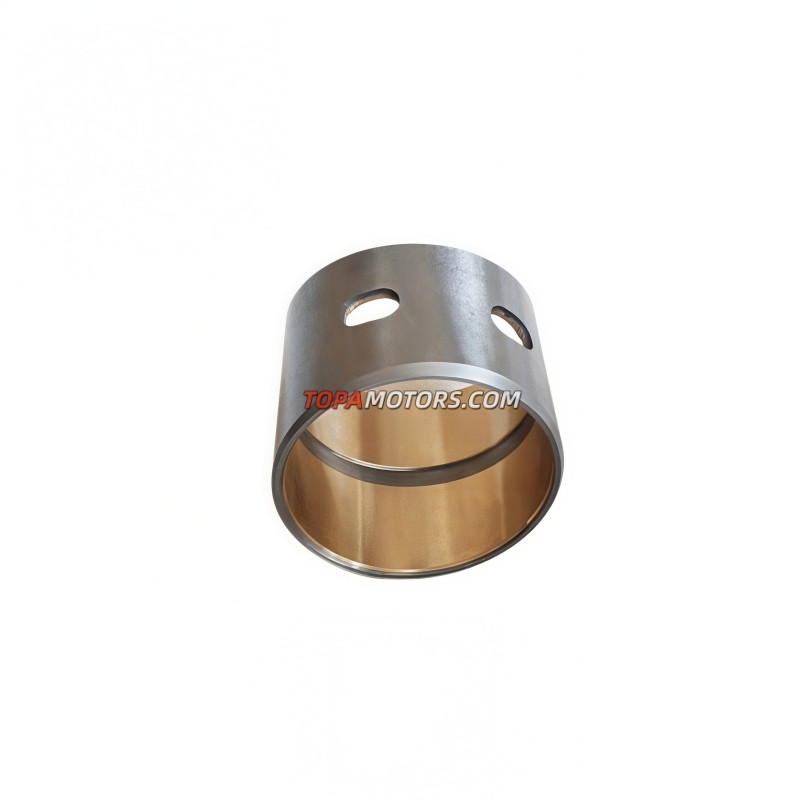

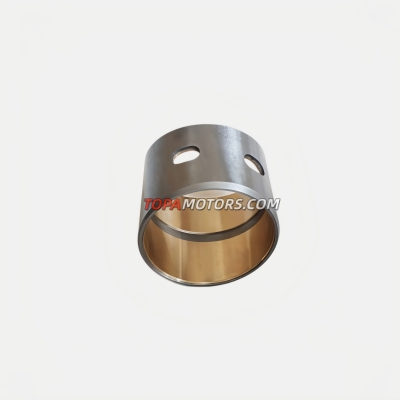

40 mm connecting rod bronze bushing 8943917940 suitable for 700P models fitted with 4HK1 or 6HE1 engines

40 mm connecting rod bronze bushing 8943917940 suitable for 700P models fitted with 4HK1 or 6HE1 engines

Product Item : 8943917940
Category： Isuzu Genuine Parts
Compatibility: 4HK1 6HE1
Part name: Connecting rod bronze bushing
Packing type: Isuzu original packing
Delivery time: 5-8 working days
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

CATEGORY	SPECIFICATION
Part name	BUSHING CONNRO
Part number	8943917940
Brand	Isuzu BVP parts
Model	700P
Engine model	4HK1 6HE1 6HK1
Packing quantity	1 pcs
Weight	0.10kg
Size reference	φ40 mm ×87 mm
Package	Isuzu BVP original packing
Delivery time	5-8 working days
Payment Terms	T/T, Western Union, Paypal

Product Design Philosophy

Precision-engineered connecting rod bushing with 40mm inner diameter. Made from wear-resistant bronze alloy, ensuring low friction and long service life under high-load conditions in commercial diesel engines.

How it works

Pressed into the connecting rod small end, the bushing houses the piston pin. It provides a smooth bearing surface, reducing friction between the pin and rod during piston reciprocation.

Problems the product can solve

Fixes knocking noises, piston pin seizure, and premature wear caused by worn bushings. Restores proper pin-to-rod clearance and prevents costly connecting rod damage.
