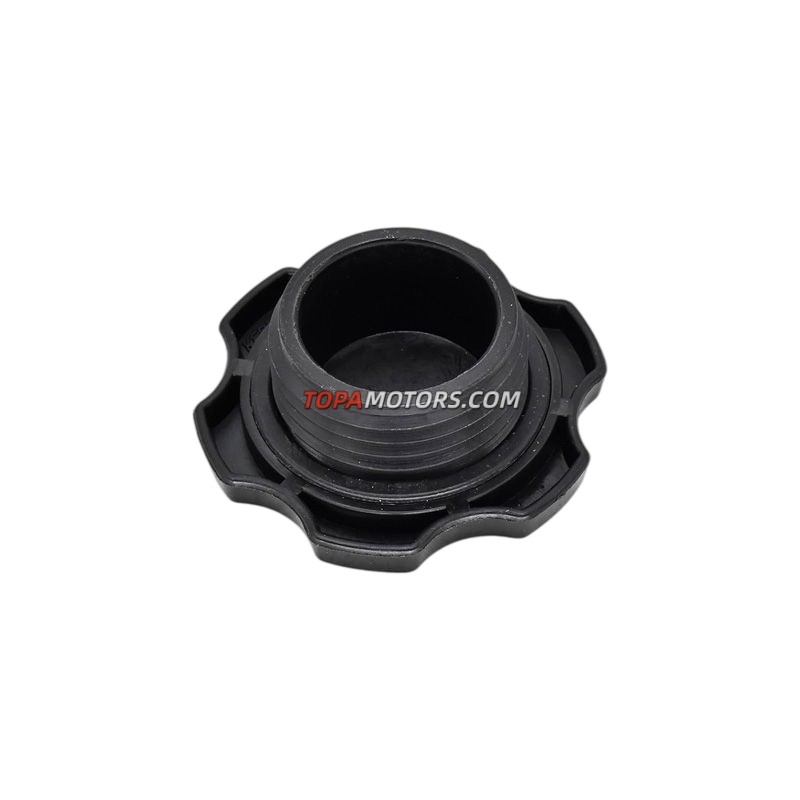

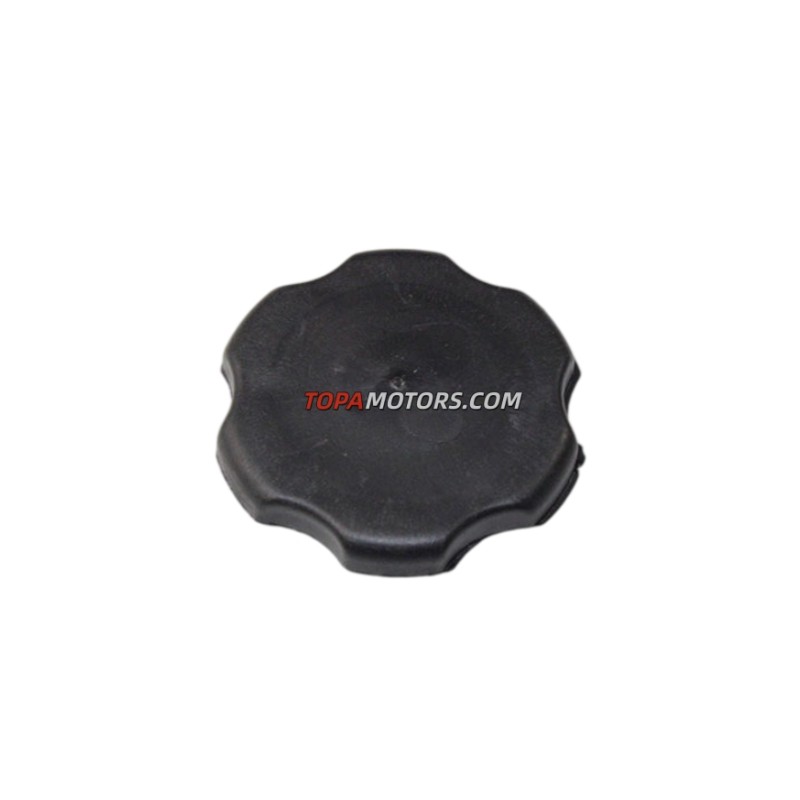

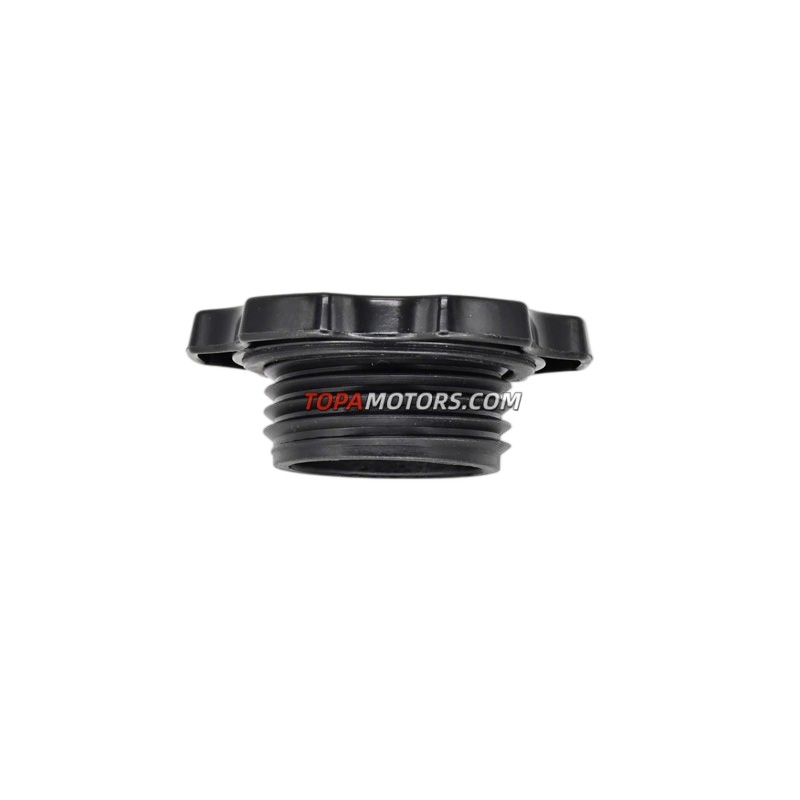

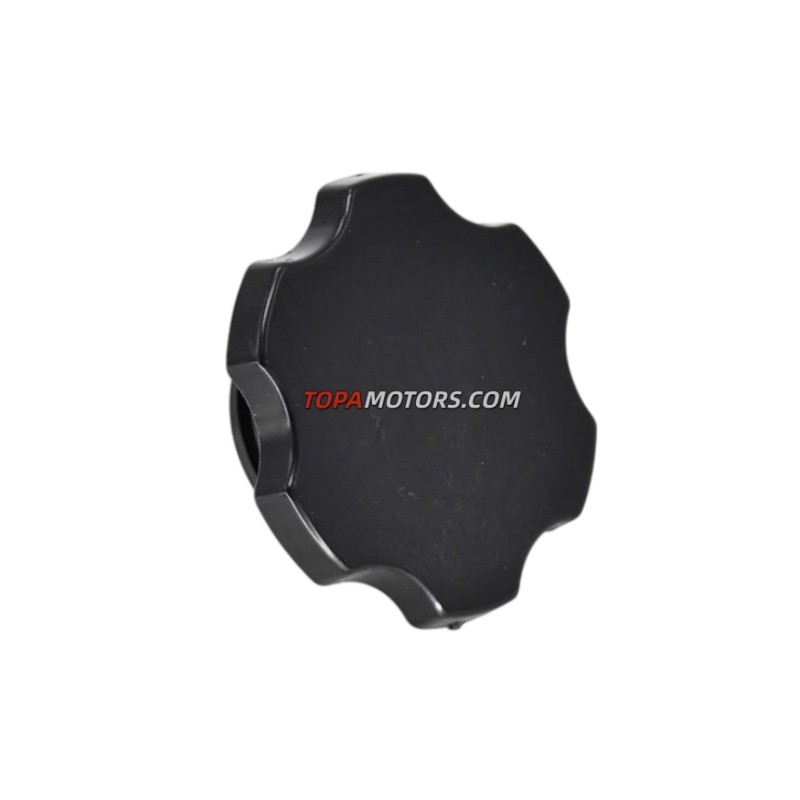

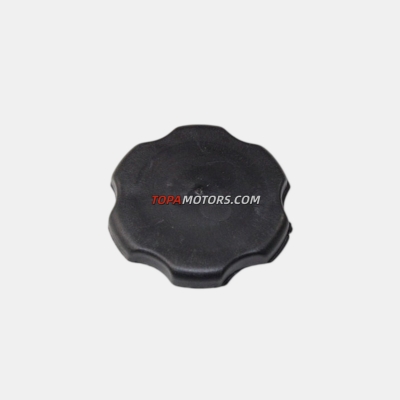

CAP OIL FILLER 8941332070 Suitable for NKP NPR 700P models fitted with 4HF1 4HG1 4HK1 4JJ1 4JB1 engines
- Product Item : 8941332070
- Category： Isuzu Genuine Parts
- Compatibility:4HF1 4HG1 4HK1 4JJ1 4JB1
- Part name:CAP OIL FILLER
- Packing type: Isuzu original packing
- Delivery time: 5-8 working days
| CATEGORY | SPECIFICATION |
| Part name | CAP,OIL FILLER |
| Part number | 8941332070 |
| Brand | Isuzu Select Parts |
| Model | NKP NPR 700P |
| Engine model | 4HF1 4HG1 4HK1 4JJ1 4JB1 |
| Packing quantity | 1 pcs |
| Material | Glass-filled Nylon Body + NBR Seal |
| Weight | 38g |
| size | Thread Ø48mm × Height 34mm |
| Package | Original ISP packing |
| Delivery time | 5-8 working days |
| Payment Terms | T/T, Western Union, Paypal |
Design Philosophy
Precision-engineered oil filler cap designed for Isuzu commercial diesel engines. Made from glass-filled nylon with a stainless-steel insert core and NBR seal, it provides a durable, heat-resistant, and leak-free seal for the oil filler neck while maintaining correct crankcase pressure in the closed breather system.
How It Works
Installed on the oil filler neck at the top of the rocker cover. The cap's NBR O-ring compresses against the filler neck when twisted 30° to lock, creating an airtight and oil-tight seal. It prevents oil mist from escaping and blocks dust, water, and debris from entering the engine, while allowing the crankcase ventilation system to function properly.
Problems It Solves
Fixes oil leaks, oil misting around the engine top, and contamination from dirt or moisture caused by a hardened, cracked, or missing oil filler cap. Restores proper sealing and crankcase pressure regulation in NKR / NPR / 700P / NQR / FSR / TFR / D-MAX trucks.
