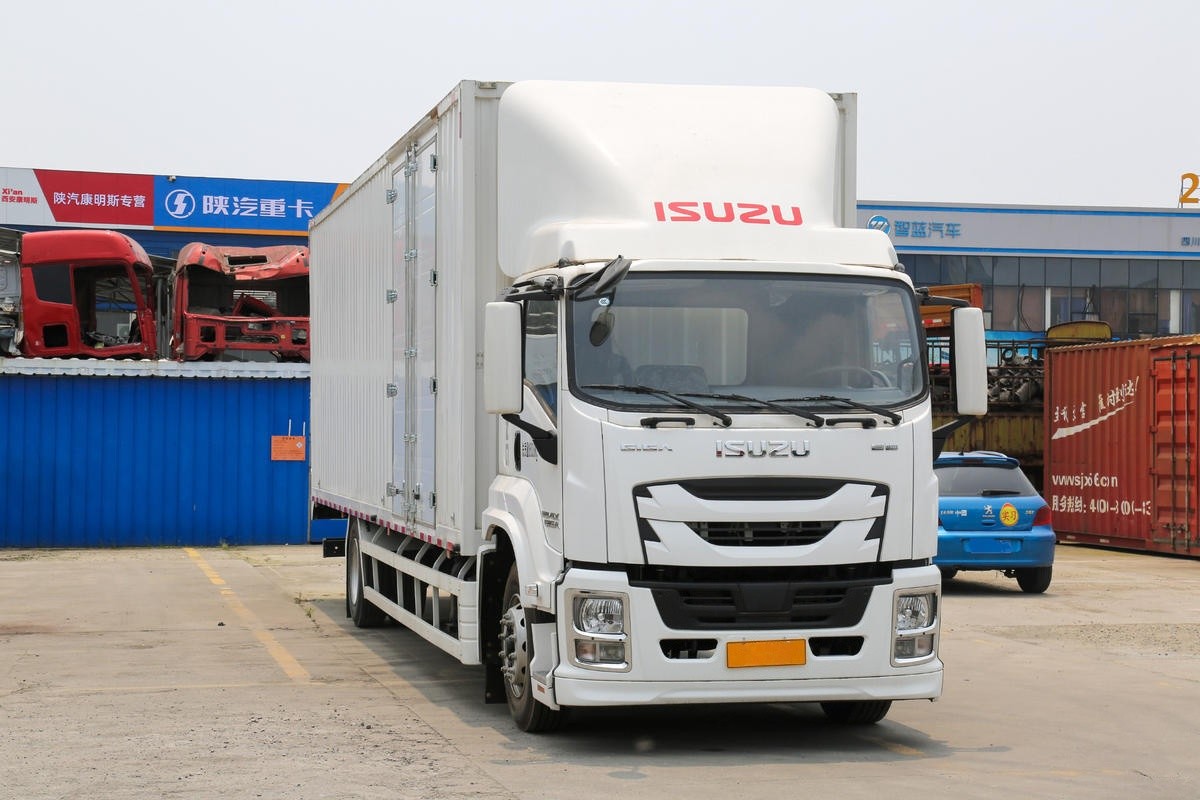

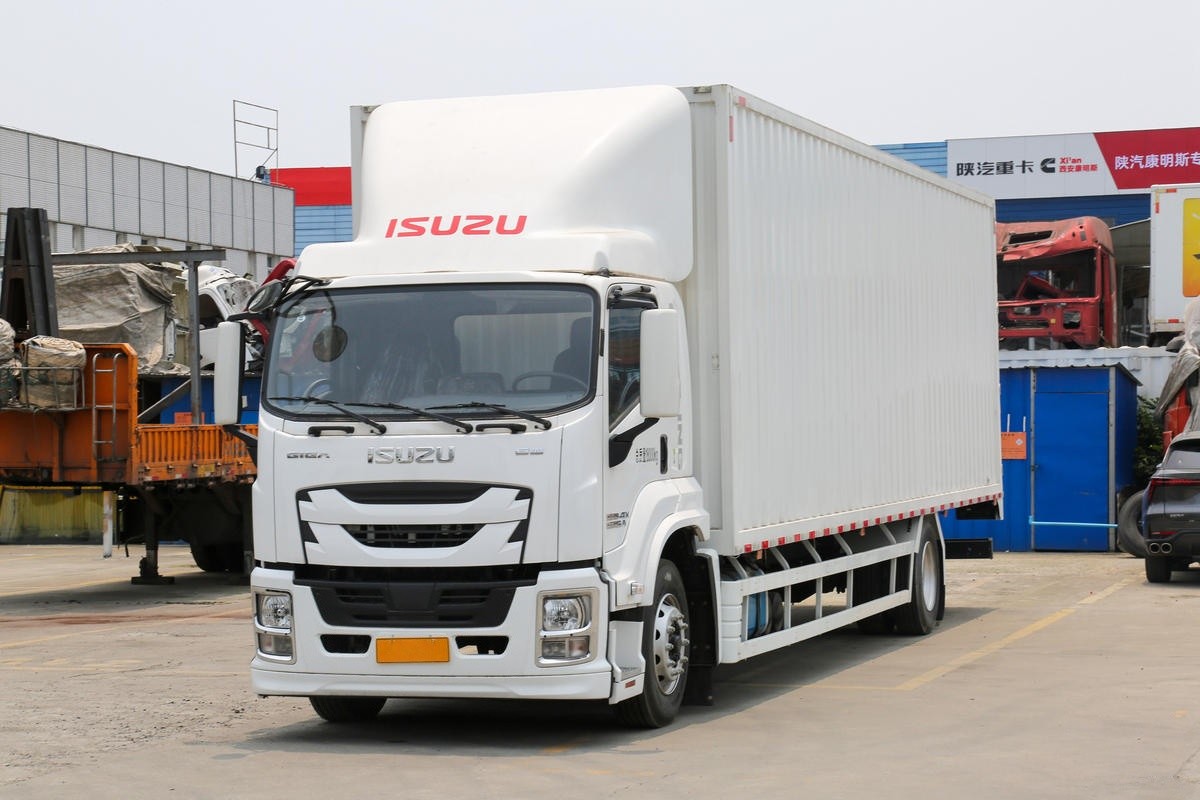

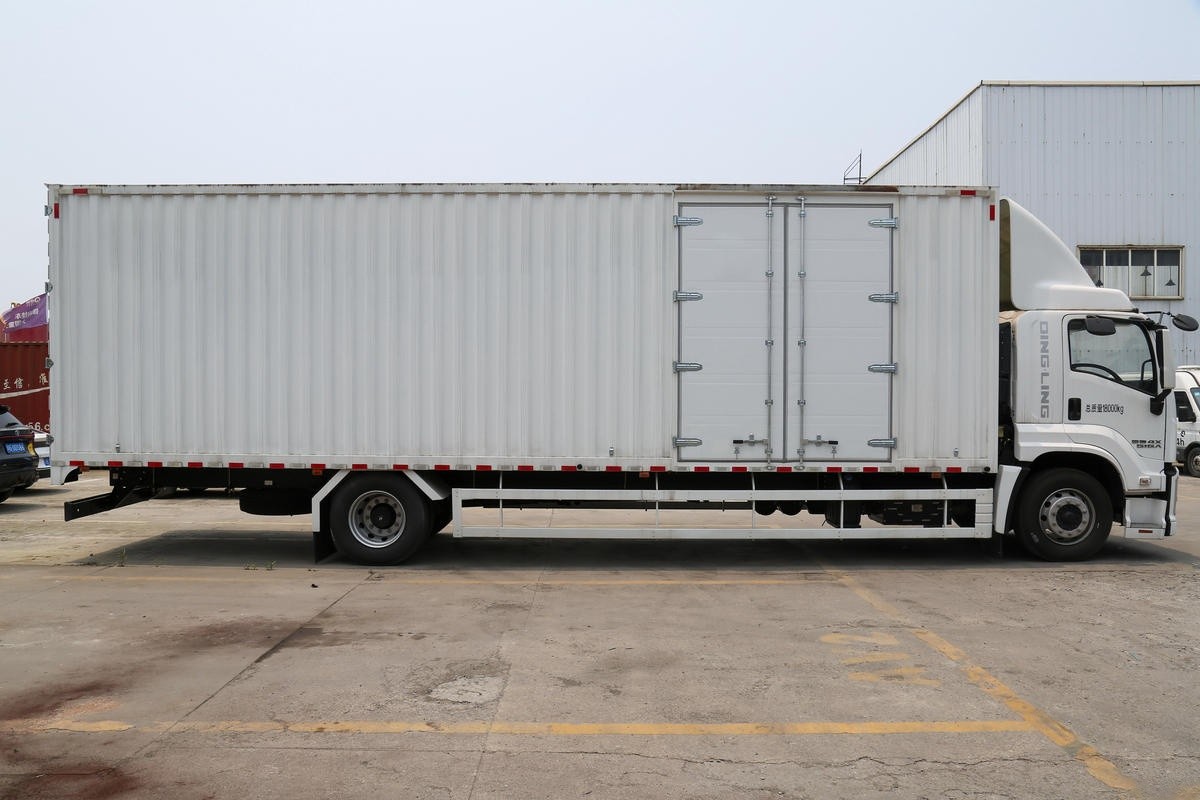

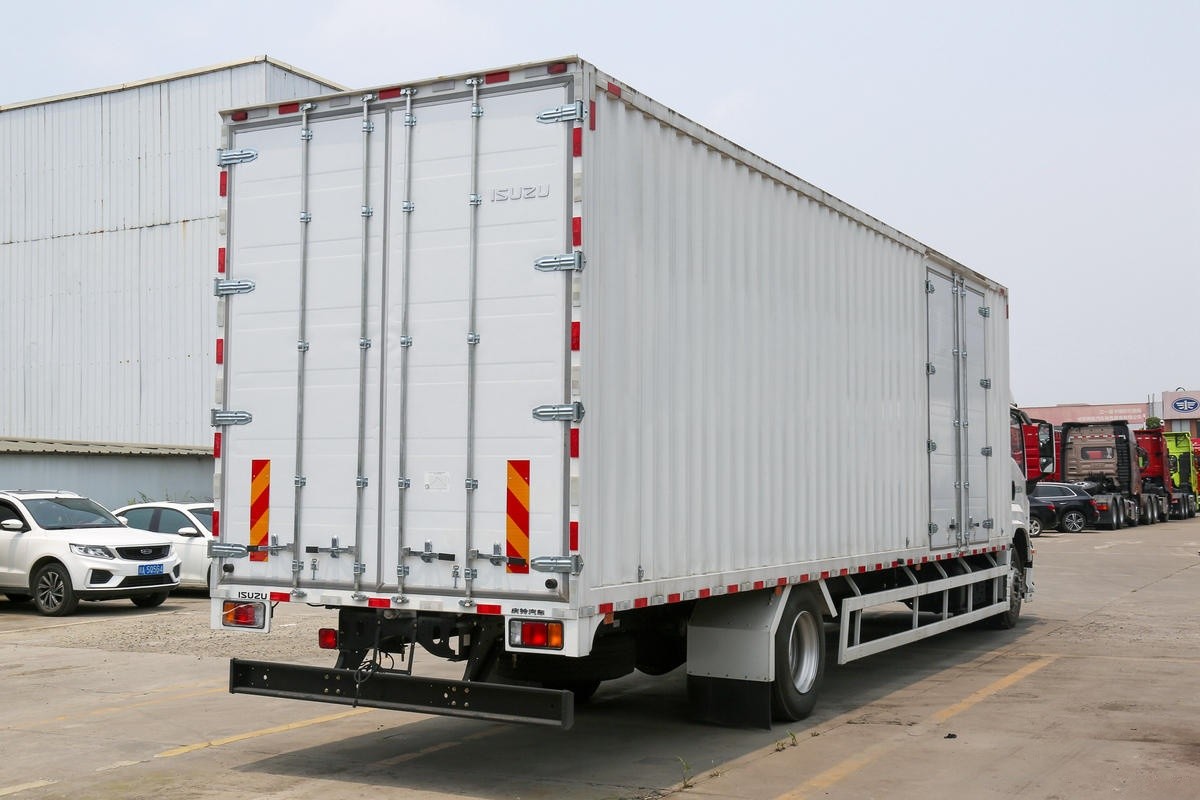

Isuzu New FVR FTR 4x2 Single Row Van Box Truck with 6HK1 240PS Diesel Engine Euro 6
- Product Item : VC66, GIGA
- Category： F-Series Medium Trucks
- Engine model: 6HK1
- Engine Power: 240PS
- Wheelbase: 5550mm/6300mm/7200mm
- Emission Standard: Euro 6
Efficient Loading:
Large-capacity cargo box, extremely high space utilization.
Stable Structure:
Isuzu chassis, stable and efficient for city delivery.
Reliable & Durable:
Isuzu-built 6HK1 series engine, over 500,000 km without major repairs.
Large-capacity cargo box, extremely high space utilization.
Stable Structure:
Isuzu chassis, stable and efficient for city delivery.
Reliable & Durable:
Isuzu-built 6HK1 series engine, over 500,000 km without major repairs.
| ITEM | SPECIFICATION | ||
| Vehicle Model | QL5180XXYEQFR | QL5180XXYESFR | QL5181XXYAEWH |
| GVW(kg) | 18000 | 18000 | 18000 |
| Curb Weight(kg) | 8850 | 9100 | 8800 |
| Axle Loads(kg) | 6500/11500 | ||
| Cabin | Isuzu cab, high-roof, left-hand drive, with Air-conditioner, 3 passengers | ||
| Overall Dimension(mm) | 9480×2550×3990 | 10945×2550×3990 | 12000×2550×4000 |
| Box Dimension(mm) | 7120×2500,2470×2625 | 8600×2500,2470×2625 | 9630,9750×2470,2500×2700,2800 |
| Wheelbase(mm) | 5550 | 6300 | 7200 |
| Engine | 6HK1-TCG61 | ||
| Engine Output (kW(PS)) | (177kW)240PS | ||
| Displacement(L) | 7.79 | ||
| Emission Standard | Euro 6 | ||
| Braking Mode | Air Brake | ||
| Max Speed(km/h) | 105 | ||
| Front/Rear Overhang(mm) | 1370/2560 | 1370/3275 | 1335/3465 |
| Tire Model | 295/80R22.5 16PR | 295/80R22.5 16PR | 295/80R22.5 16PR,275/80R22.5 18PR |
